Description
For 95″+ motors with 10:1 compression ratio or higher.
Maximum torque and HP at middle and upper rpm ranges (2400-6200 rpm).
Coil bind must be checked but can use stock tappets.
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Four-gear set required for installation.
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specs
| Exhaust Lift at TDC | 0.218″ |
| Grind | 59 Series |
| Intake Close | 57° |

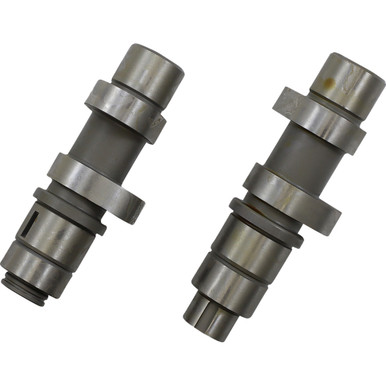

| Product Name | Cam Set |
| Application | Exhaust |
| Exhaust Close | 27° |
| Exhaust Open | 63° |
| Exhaust Duration | 270° |
| Intake Lift at TDC | 0.238″ |
| Intake Open | 29° |
| Exhaust Lift | 0.590″ |
| Exhaust Lobe Centerline | 108° |
| Intake Duration | 266° |
| Intake Lift | 0.590″ |
| Intake Lobe Centerline | 104° |
| Riding Style | Street |
| Units | Pair |
| Type | Gear Drive |
