Description

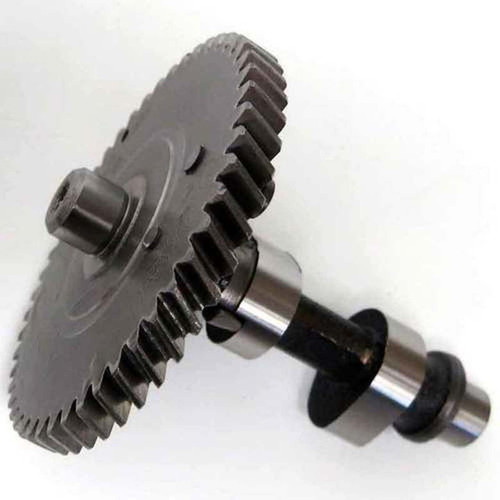

The DynoCams 356 is a high lift modified grind that is very capable of extreme RPMs. This cam has very aggressive ramps and requires an upgraded spring package, billet rod, and billet flywheel. For use with Tillotson or larger carb.
Engine: 196cc OHV Clone
Recommended Class: Modified
Target (MAX) RPM: 8500-9000
Spring Pressure (In / Ex): 36 lbs
Valve Lash (IN/EX): .003″
Ignition Timing: 36 Deg BTDC
INTAKELIFT: .3555
Dur @ .050″: 254.3 Deg.
C/L: 108 ATDC
EXHAUSTLIFT: .3555
DUR @ .050″: 254.5 Deg.
C/L: 108 BTDC
THE LOBES ON THIS CAM ARE WELDED.
Processed and ground by the hard working employees of DynoCams in the USA.
