Description

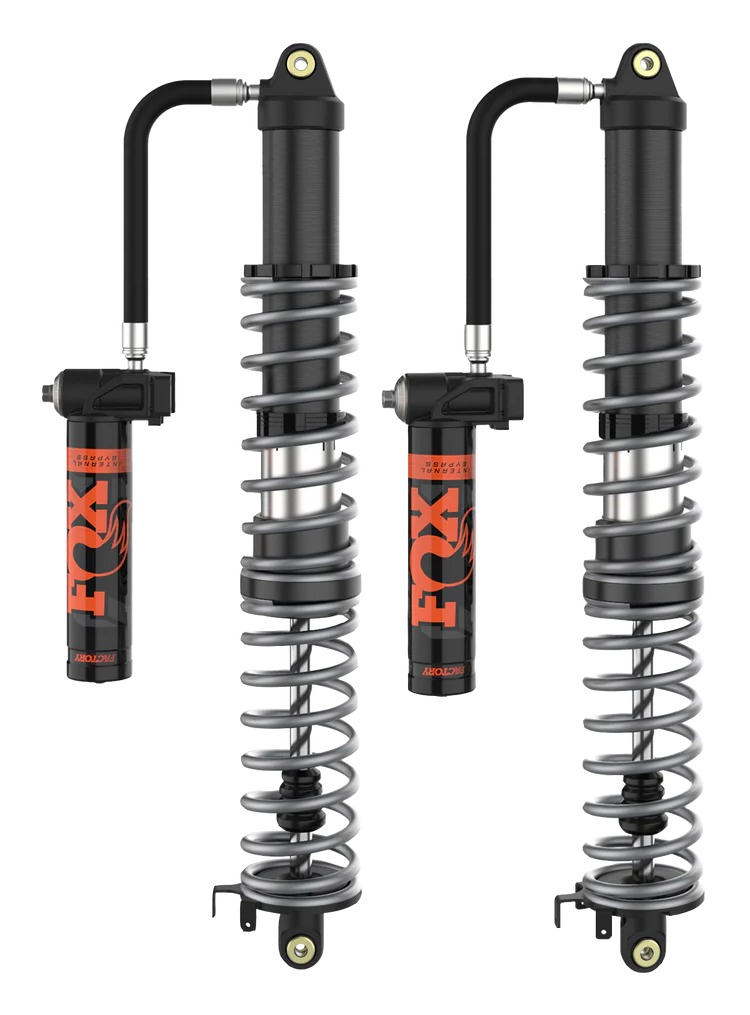

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Polaris RZR XP 1000 / XP Turbo
Fox Factory has engineered a cutting-edge solution by adapting race-proven, position-sensitive damping technology from the world of trophy trucks to create a direct bolt-on replacement for UTVs and Side-by-Sides. This advancement features an enlarged shock bore diameter to curb fading and incorporates velocity-sensitive damping for enhanced resistance against constant impacts. The design also emphasizes weight reduction without compromising performance, utilizing aluminum for both bodies and reservoirs. For those looking to fine-tune their suspension, the product offers independent high- and low-speed compression adjusters, a wide-range rebound adjuster, and a dual-rate spring package with adjustable crossover rings for peak performance adjustments. The patented Internal Bypass technology allows the damping control to adapt based on the piston’s position within the shock, ensuring a balance between smooth handling over rough terrain and robust resistance against bottoming out at high speeds.
Features:
- Position-sensitive internal bypass damping tubes
- Velocity-sensitive valved, high flow damping piston
- Piggyback reservoir or Remote reservoir
- Silver dual rate race springs with crossover
- 7/8” hard-chromed induction-hardened shaft
- PTFE-lined spherical bearings for smooth, durable movement
- Type III hard-anodized aluminum body and reservoir
- Sold as a pair
Adjustments/Technical Information:
- Spring preload
- Dual-Speed Compression (DSC)
- Wide-range rebound
- Spring crossover
- Extended: 34.30
- Compressed: 22.10
- Travel: 12.20
- Top Mount: Eyelet
- Bottom Mount: Eyelet
- Reservoir: Remote
Note: Images are for reference, actual product may vary based on application
