Description
Piston Kit – 4.125″ Standard – 10.0:1 CR – 96″-103″ Twin Cam Bored to 117 ci w/SE 95 cc Heads
Features
- New skirt coating technology is applied to the entire thickness of the piston-to-wall clearance for a zero install clearance; coating then abrades in on start-up to hone for the perfect fit per cylinder
- Hard anodized top ring groove eliminates micro welding of the ring to the groove; this maintains a flat and smooth surface for the best ring seal and top ring groove
- Skirt coating eliminates piston rock for the best possible ring seal with no piston slap noise
- Hard anodized crown to aid in heat deflection and to reduce corrosion from alcohol fuels

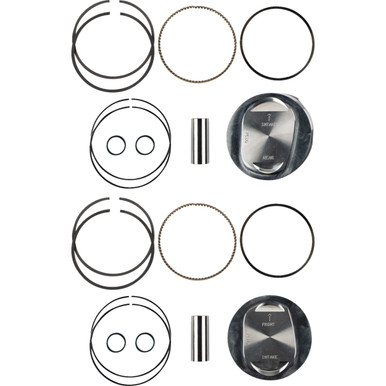

- Includes pistons, rings, pins and clips
- Made in the USA
Specs
| Piston Head Shape | Domed |
| Product Name | Piston Kit |
| Piston Material | 4032 Aluminum Alloy |
| Ring Material | Moly Coated |
| Skirt Coating | Line2Line |
| Bore Size | 104.80 mm |
| Stroke Length | 4.375″ |
| Displacement | 117″ |
| Model | Super Duty |
| Style | Forged |
| Bore – Oversize | Standard |
| Riding Style | Street |
| Compression Ratio | 10.0:1 |
| Units | Kit |
